G Clip — Permanent Solar Bird Proofing Fixings in Anodised Aluminium
The Problem Every Installer Has Faced
The cable tie is fast. But UV exposure degrades it inside eighteen months and it snaps under load. The drilled fixing holds permanently — but the moment the drill makes contact with the panel frame, the manufacturer’s warranty is void.
The mechanical fixing that delivers screw-fix security without touching the panel frame. Drill-free, warranty-safe, built to outlast the panels it protects.
For years, those were the only two options. A fix that fails, or a fix that voids.
There was no third option. Until the G Clip.
- Warranty-Safe
- Anodised Aluminium
- 25-Year Service Life
- Commercial Grade
What the G Clip Does Differently

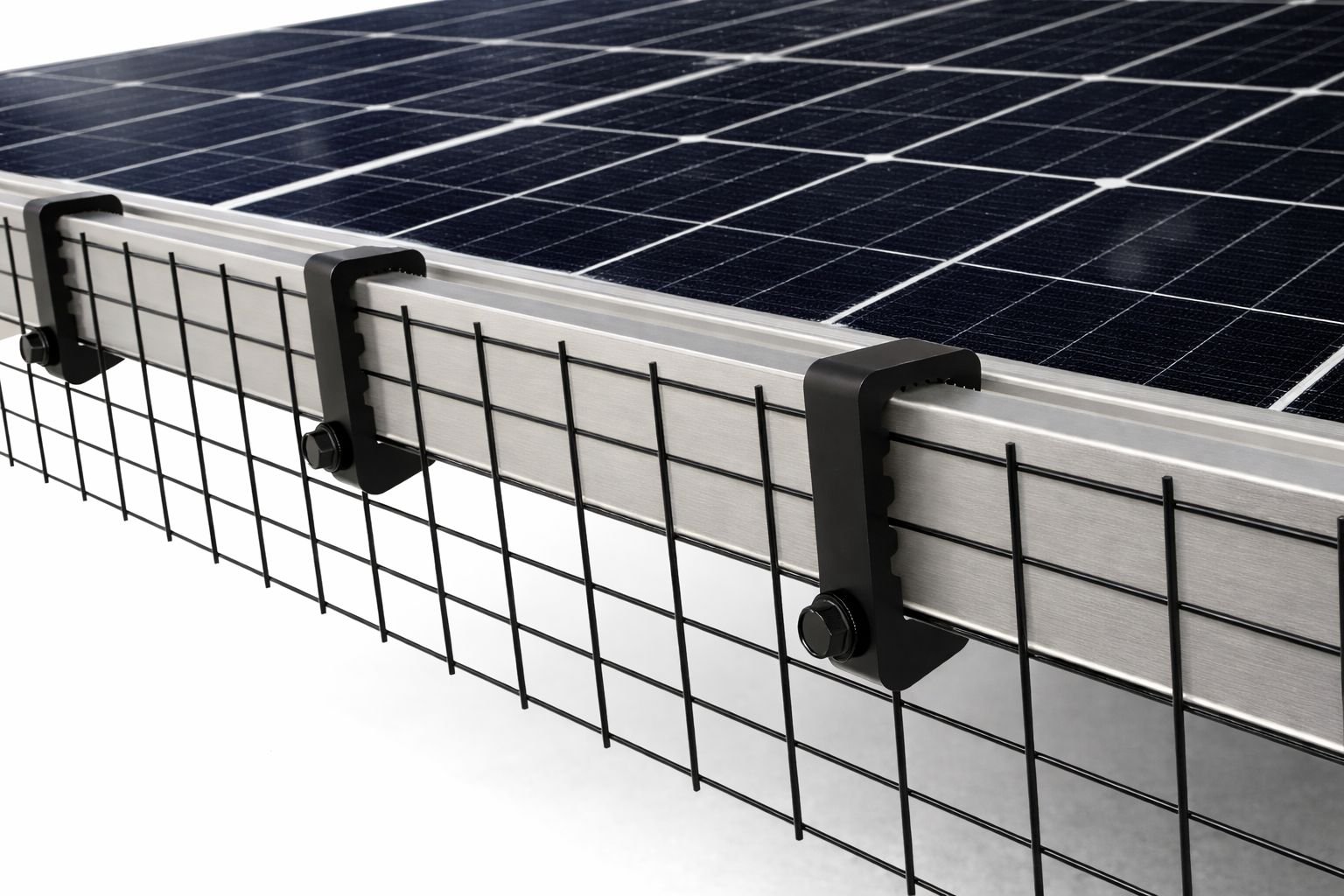

The G Clip uses the geometry of the panel frame itself as the fixing point. The clip hooks over the top edge of the frame, wraps the lip, and a single screw tightens against the outer edge creating a mechanical lock with no drilling, no adhesive, and no panel contact beyond the clip body itself.
- A mechanical lock with no drilling, no adhesive, and no panel contact. That is the engineering case for anodised aluminium.
The result is a fixing that is mechanically equivalent to a drilled screw fix. It will not shift under wind load. It will not degrade in UV. It will not fail and require a callback.
Why Anodised Aluminium
Plastic degrades. That is not a criticism, it is a material property. UV exposure, thermal cycling, and sustained wind load will fatigue any polymer over a long enough period. For a ten-year system, that timeline matters.
- Anodised aluminium does not degrade in the same way. The anodising process creates a corrosion-resistant oxide layer that is part of the metal itself, not a coating that can peel or chip. The G Clip is rated for the full service life of the panels it protects: 25 years minimum, in any outdoor UK climate.
It is heavier than a plastic clip. It costs more. For a permanent commercial installation, those are not objections — they are the point.
Where the G Clip Is Specified
The G Clip is the recommended permanent fixing across the Renew bird proofing range. It is specified on:
- Commercial rooftop arrays requiring permanent bird exclusion
- Ground-mount and agricultural installations
- Coastal and elevated sites with sustained wind load exposure
- Any installation where the panel warranty must be preserved over the full system life
- Retrofit proofing on existing arrays where plastic clips have previously failed
About the Fixing Screw
The G Clip is supplied without a screw. A single fixing screw is available separately from the Renew range, specified for compatibility with the G Clip geometry and corrosion-rated for outdoor use.
- This approach gives specifiers the choice to use preferred fixings on commercial projects. For standard installations, the Renew-supplied screw is the simplest option.
G Clip vs C Clip Range — Full Comparison
| Feature | C Clip | C Clip with Screw | G Clip ★ Premium |
|---|---|---|---|
| Material | UV plastic | UV plastic | Anodised aluminium |
| Fixing type | Friction clip | Clip + screw lock | Mechanical frame lock |
| Drilling required | No | No | No |
| Panel warranty safe | Yes | Yes | Yes |
| Wind / vibration resistance | Standard | High | Maximum |
| Service life | 12+ years | 12+ years | 25+ years |
| Callback risk | Low | Eliminated | Eliminated |
Installation Overview
The G Clip installs without drilling in four steps. A small screwdriver is the only tool required.
- Position the clip hook over the top edge of the panel frame — the G-profile seats into the frame lip naturally
- Press the clip body down until it is flush against the mesh
- Insert the fixing screw through the clip body
- Tighten against the outer frame edge — firm hand-tightness only; do not overtighten
Technical Specification
| Specification | Detail |
|---|---|
| Material | Anodised aluminium |
| Compatible panel frame | 30mm |
| Service life | 25+ years — full panel system life |
| Corrosion resistance | Anodised oxide layer — rated for coastal exposure |
| Drilling required | No |
| Panel warranty impact | None |
| Warranty | 12-year product warranty |
Photo Gallery
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
G Clip Video
Downloads
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus,
luctus nec ullamcorper mattis, pulvinar dapibus leo.
Specifying for a commercial project? Request a sample or get technical support from the Renew team.
Related Products
Frequently Asked Questions
Why is the screw sold separately?
Specifiers on commercial projects often have preferred fixings that must be logged in the project record. Supplying the clip separately gives you that flexibility. For standard residential work, the Renew screw is designed for the G Clip and is the simplest option.
Can the G Clip be used alongside plastic C Clips on the same array?
Yes. Both clip types are compatible with the same mesh and the same 30mm panel frames. Many installers specify G Clips on exposed perimeter edges and C Clip with Screw on sheltered internal sections.
Is the G Clip suitable for retrofit installations?
Yes. The G Clip installs without drilling and without removing the panels — it is particularly well suited to retrofit on arrays where plastic fixings have previously been dislodged or degraded.
Does anodising affect the clip dimensions?
No. Anodising adds a surface layer of approximately 10–25 microns — negligible for clip geometry. The G Clip seats correctly on any 30mm frame within the Renew compatibility range.
