SOLAR BIRD MESH FIXINGS — C CLIP RANGE
The installer’s standard.Now with a permanent option.
- No panel drilling
- Warranty intact
- UV-stable construction
- Tool-free base fit
The clip that changed the industry
Before the C Clip, securing bird mesh meant driving a sheet metal screw directly into the panel frame. It worked. But it voided the panel warranty the moment the drill made contact.
- Renew’s C Clip range takes that standard and improves on it. Higher-density material, consistent dimensions, UV stabilisation built to last — and now, an optional permanent lock that protects against callbacks.
The C Clip changed that — a friction-fit fixing that secures mesh without touching the frame with any penetrating fixing. It became the most widely used method in the industry.
Two clips — same base, different permanence
Both are designed for 30mm solar panel frames. Both install without drilling. The difference is in how permanently they hold.

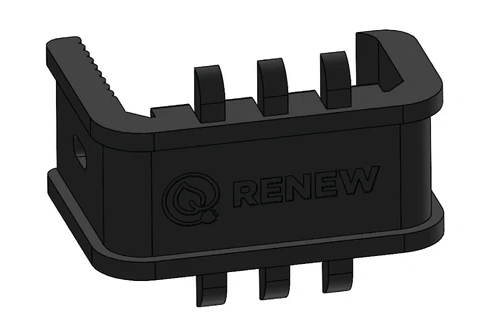

C Clip
The original friction-fit clip. Fast to install, reliable on standard domestic installs.
- High-density UV-stabilised hard plastic
- Precision friction fit — no tools required
- 30mm panel frames only
- Compatible with bird mesh and solar spikes
- Friction fit only — no screw lock option
Pack sizes:
Bag of 100 | Bag of 150 | Box of 1,500
RECOMMENDED

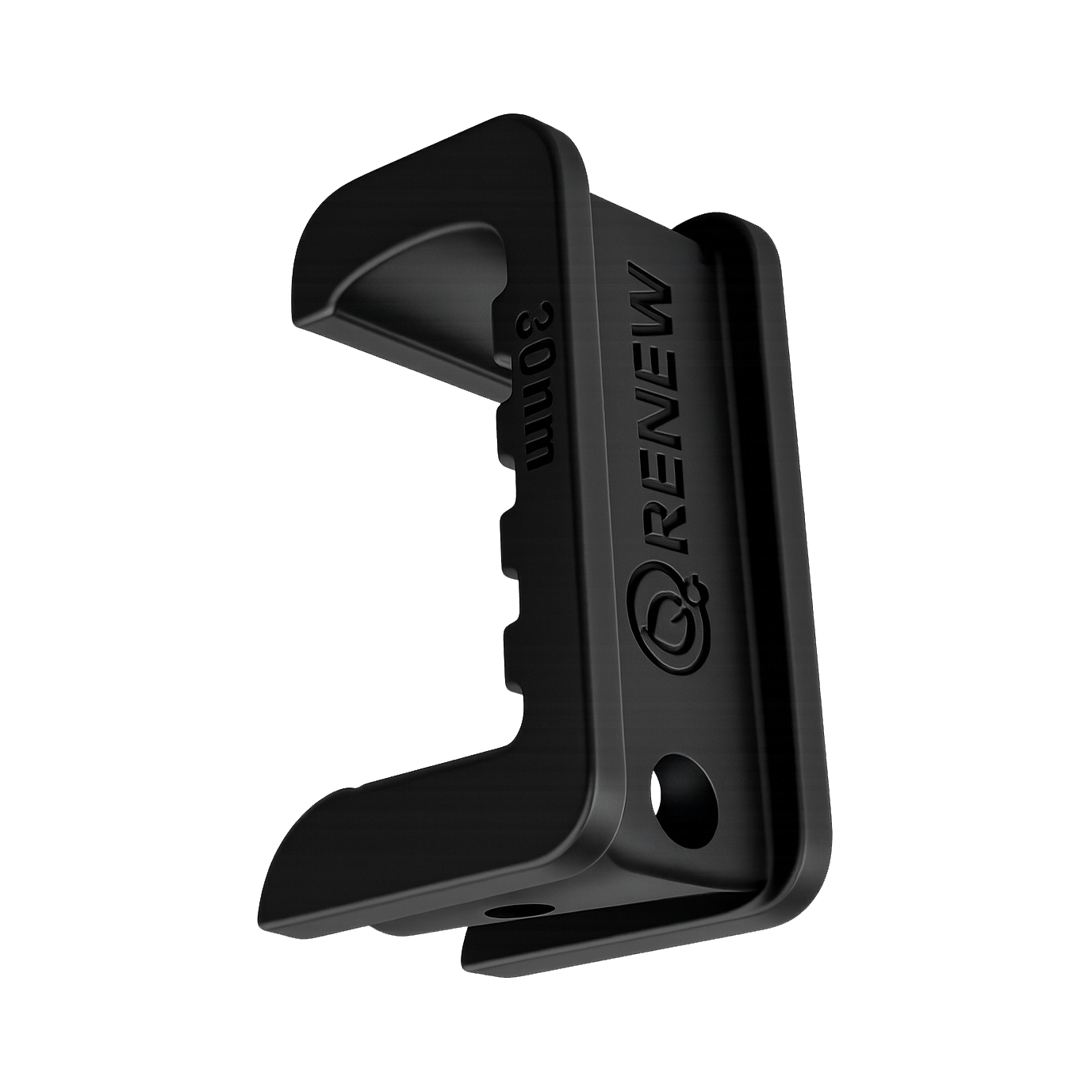

C Clip with Screw
Everything the C Clip does — plus the option to lock permanently. The right call for exposed sites, commercial arrays, and anywhere a callback isn’t acceptable.
- Durable outdoor-rated construction
- Friction fit as standard — tool-free
- Optional screw lock catches frame edge, not frame body
- Resists thermal expansion and high-wind load
- Panel warranty fully intact
Pack sizes:
Bag of 100 | Box of 1,000
Screw sold separately — 25mm galvanised self-drilling hex head sheet metal screw.
Which clip is right for the job?
| C Clip | C Clip with Screw — Recommended | |
|---|---|---|
| Panel compatibility | 30mm only | 30mm only |
| Tool-free install | ✓ Yes | ✓ Yes |
| Warranty impact | None | None |
| Fixing method | Friction fit | Friction fit + optional screw lock |
| Wind / thermal resistance | Standard | Permanent mechanical bond |
| Best for | Standard domestic installs | Exposed, high-wind, or commercial installs |
| Bulk pack size | 100 / 150 / 1,500 | 100 / 1,000 |
If permanence matters — exposed roofs, commercial arrays, anywhere a site visit costs money — the C Clip with Screw is the right specification.
Fits in seconds. Stays for years.

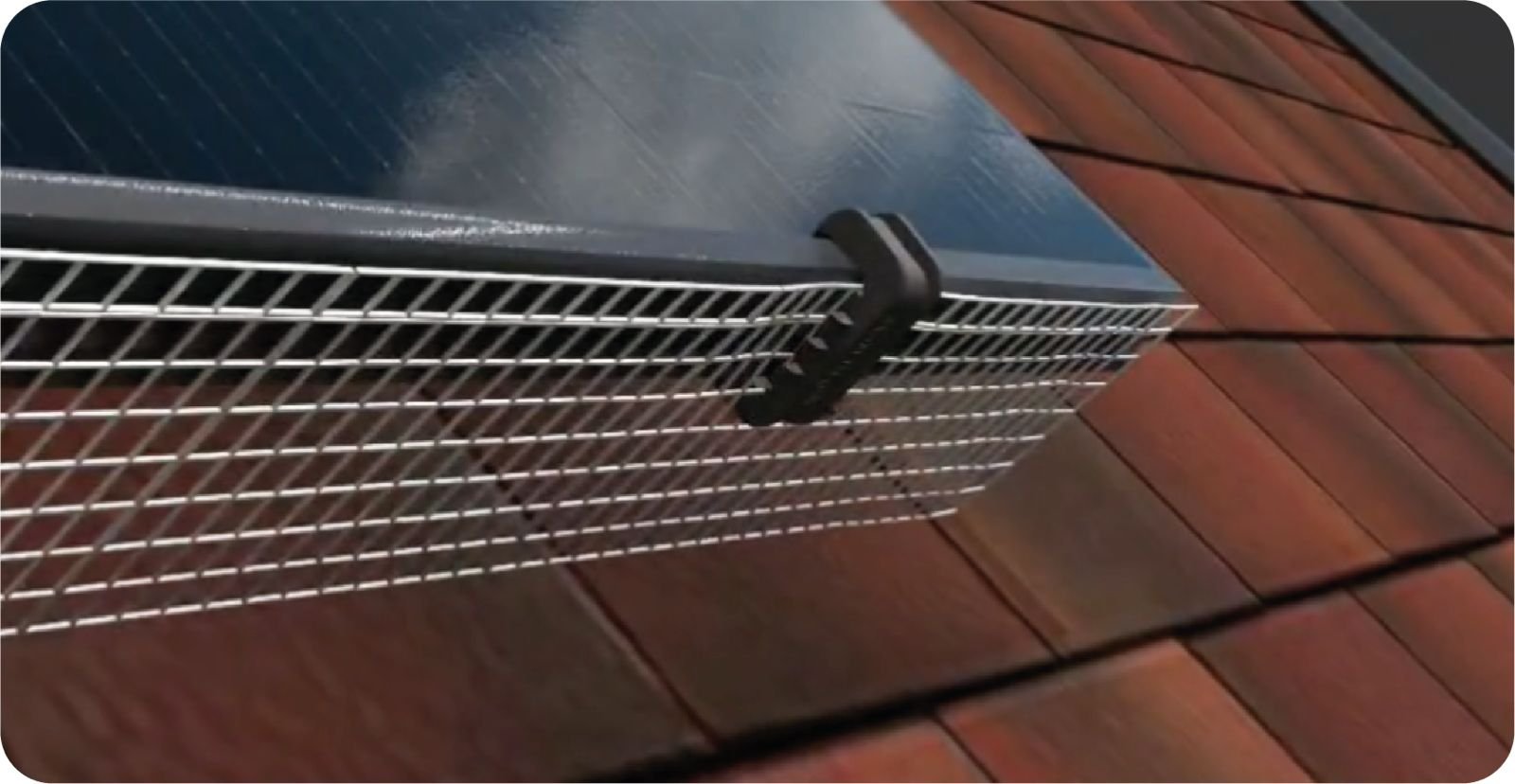

- C Clip — installation
Step 1 : Slide onto frame
Engage the clip at the required fixing positions along the panel perimeter. The precision friction fit locks immediately.
Step 2 : Feed the mesh
Thread bird mesh through the clip as you work around the array. No tools required at any stage.
Technical Specification
- C Clip
| Material | 3High-density UV-stabilised hard plastic |
| Panel compatibility | 30mm frames only |
| Fixing method | Precision friction fit, tool-free |
| Compatible with | Bird mesh and solar spikes |
| Pack sizes | Bag of 100 / Bag of 150 / Box of 1,500 |
| Warranty impact | None |

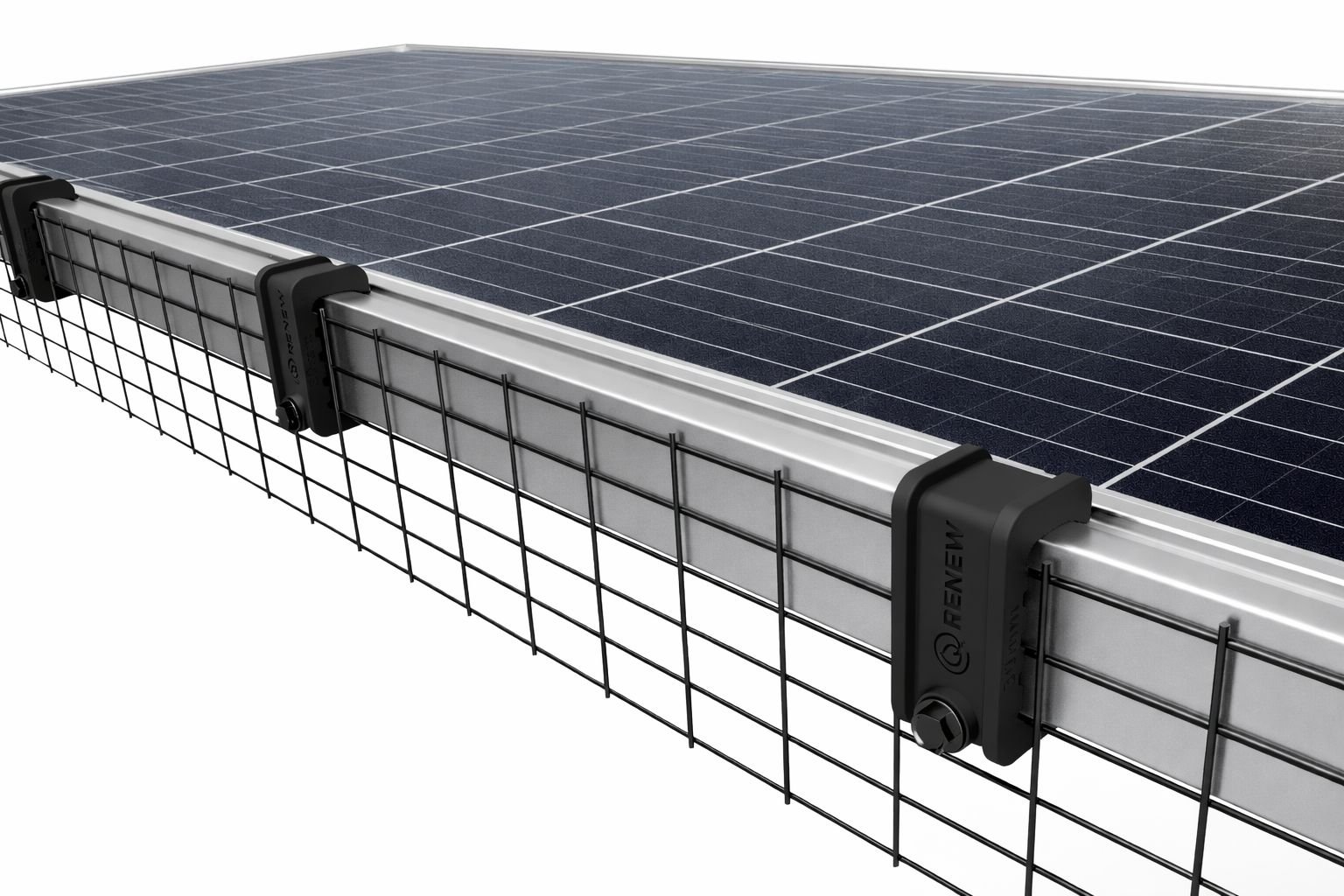

- C Clip with Screw — installation
Step 1 : Fit and mesh as above
The base installation is identical. For standard conditions, the friction fit alone is sufficient.
Step 2 : Lock with screw (exposed / commercial)
Insert the 25mm galvanised self-drilling screw through the clip so it catches the bottom edge of the frame. Do not drive into the frame itself. The screw creates a permanent mechanical lock — warranty intact.
- C Clip with Screw
| Material | Durable outdoor-rated construction |
| Panel compatibility | 30mm frames only |
| Fixing method | Friction fit as standard; optional screw lock |
| Screw spec | 25mm galvanised self-drilling hex head (sold separately) |
| Compatible with | Bird mesh and solar spikes |
| Pack sizes | Bag of 100 / Box of 1,000 |
| Warranty impact | None |
Photo Gallery
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
C Clip Video
Downloads
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus,
luctus nec ullamcorper mattis, pulvinar dapibus leo.
Volume pricing and trade accounts
Available to trade accounts in bags and bulk boxes.
Contact the team for volume pricing, product samples, or technical support. Usually back to you within one working day.
Related Products
Frequently Asked Questions
Do these clips void the panel warranty?
No. Both clips engage the panel frame without penetrating it. The optional screw on the C Clip with Screw catches the bottom edge of the frame rather than drilling into it — the warranty remains fully intact.
What panel depth are these designed for?
Both the C Clip and C Clip with Screw are designed specifically for 30mm solar panel frames and are not suitable for other panel depths.
Can I use these for solar spikes as well as mesh?
Yes. Both clips are compatible with bird mesh and solar spike systems.
Does the screw come included with the C Clip with Screw?
No — the 25mm galvanised self-drilling hexagonal head sheet metal screw is available separately from the Renew store.
When should I specify the C Clip with Screw over the standard C Clip?
For any installation where movement cannot be tolerated — exposed or coastal roofs, commercial arrays, high-wind locations, or anywhere a callback is not an option. The screw fixing turns the clip into a permanent installation without affecting the panel warranty.
